Same Model, Two Approaches

Blueprint MCP made waves by generating architecture diagrams from codebases in ~60 seconds. It uses Nano Banana Pro for image generation with built-in automated code analysis.

image-mcp also uses Nano Banana Pro - but as a generalist image tool without code analysis built in. The agent has to do that work.

	Blueprint MCP	image-mcp + Agent
Image Model	Nano Banana Pro	Nano Banana Pro
Code Analysis	Built into the MCP	Agent does the work
Speed	~60 seconds	~10 minutes
Approach	Specialized automation	Generalist + agent effort

The question: When both tools use the same underlying model, can agent-driven deep analysis beat specialized automation?

The Agent-Driven Approach

Without built-in code analysis, we used 3 parallel sub-agents to explore the LangGraph source code:

Agent 1: Core architecture (StateGraph, Pregel, Channels)
Agent 2: Execution model (super-steps, task scheduling, version tracking)
Agent 3: Persistence & capabilities (checkpointing, interrupts, streaming)

What Deep Analysis Found

Reading actual source files uncovered implementation details:

BaseCheckpointSaver (Abstract)
├── InMemorySaver (testing)
├── PostgresSaver (production)
└── SqliteSaver (local dev)

Channel Types:
├── LastValue - stores single latest value
├── BinaryOperatorAggregate - reduces with operator
├── Topic - pub-sub for Send dispatch
└── EphemeralValue - not persisted

Durability Modes: sync | async | exit
Streaming Modes: values | updates | checkpoints | tasks | debug | messages | custom

Expert Prompt Engineering

With real architectural knowledge, we crafted prompts using:

2025 design trends (bold minimalism)
Microsoft's architecture diagram best practices (directional arrows, clear labels, visual hierarchy)
C4 model principles (layered abstraction, consistent notation)

Results

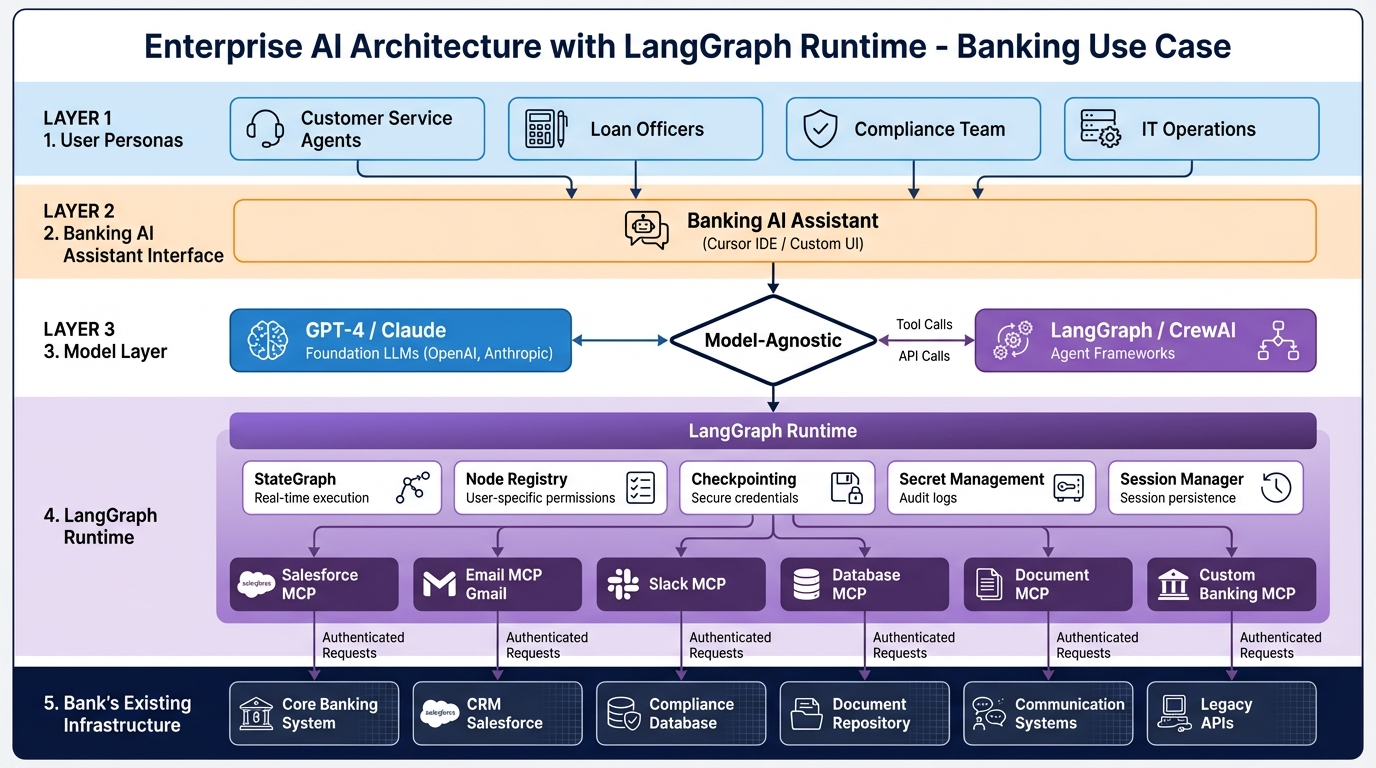

Banking Use Case Diagram

The enterprise architecture diagram shows clear advantages:

Professional iconography throughout
Cleaner layer separation
Proper MCP server representation
Better color hierarchy

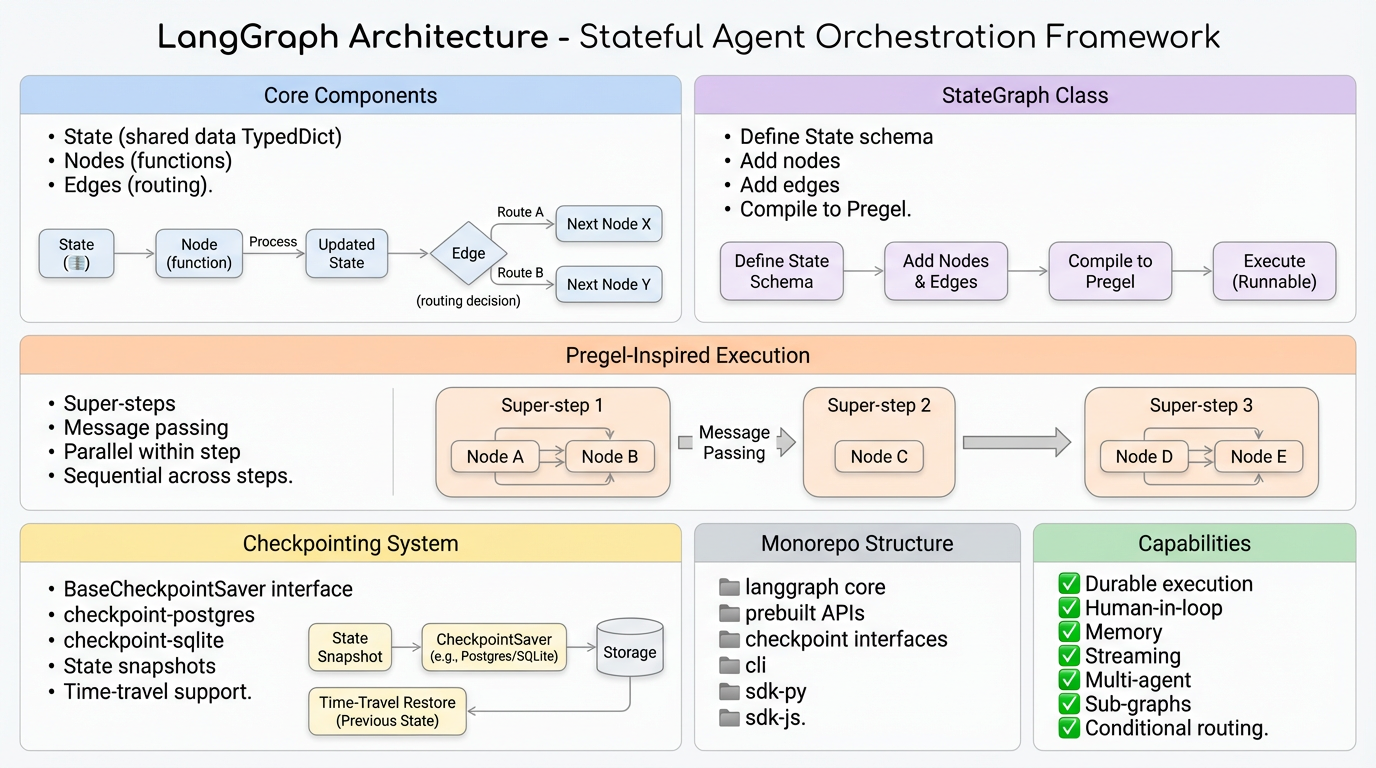

LangGraph Core Architecture

After refinement, a cleaner diagram matching Blueprint MCP's scannability while including deeper technical accuracy from source code analysis.

Verdict

Same model, different strengths:

Blueprint MCP (Specialized + Automated)

✅ Fast (~60 seconds) ✅ Zero prep required ✅ Great for quick exploration ❌ Limited customization ❌ Analysis depth depends on automation

image-mcp + Agent (Generalist + Manual)

✅ Deeper analysis possible ✅ Full control over prompts and style ✅ Can incorporate domain expertise ❌ Slower (~10 minutes) ❌ Requires agent effort

Key Insight

The agent is the differentiator, not the MCP.

When both tools use the same underlying model, quality comes from:

Depth of analysis - automated scanning vs agent reading source files
Prompt engineering - generic vs expert-crafted
Design knowledge - defaults vs researched best practices

A generalist tool + capable agent can beat specialized automation when the agent invests in understanding the domain.

When to Use Each

Blueprint MCP: Quick results, exploring unfamiliar codebases, "good enough" diagrams

image-mcp + agent: Accuracy matters, specific design requirements, control over emphasis

Power move: Blueprint MCP for exploration, image-mcp for polished final output.
